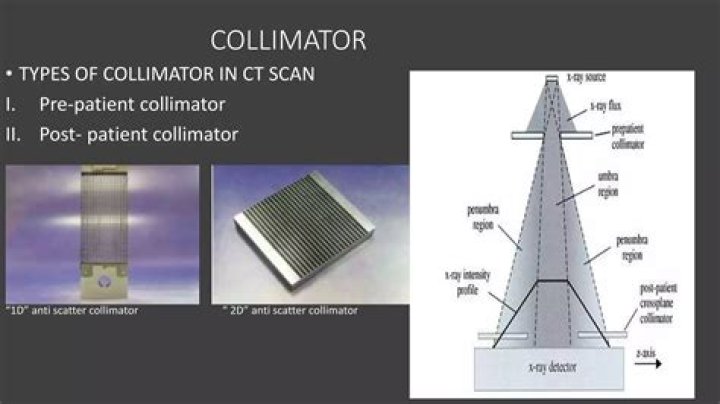

An X-ray collimator can be made from multiple materials including lead, tungsten, molybdenum, tin, bismuth, high density plastics and more.

.

Also, how is a collimator constructed?

An optical collimator consists of a tube containing a convex lens at one end and an adjustable aperture at the other, the aperture being in the focal plane of the lens. Radiation entering the aperture leaves the collimator as a parallel beam, so that the image can be viewed without parallax.

Similarly, what is XRAY collimation? A collimator is a metallic barrier with an aperture in the middle used to reduce the size and shape of the X-ray beam, thereby also reducing the volume of irradiated tissue in the patient. Filtration and collimation of the X-ray beam are important safety measures.

Similarly one may ask, what is the main function of a collimator?

The function of a collimator is to stop all non-perpendicular photons from striking the crystal.

Why is collimation important in radiology?

Proper collimation is one of the aspects of optimising the radiographic imaging technique. It prevents unnecessary exposure of anatomy outside the area of interest, and it also improves image quality by producing less scatter radiation from these areas.

Related Question Answers

What is meant by collimation?

collimation - Computer Definition The process by which a beam of radiant electromagnetic energy is lined up to minimize divergence or convergence. In a fiber optic transmission system (FOTS), a perfectly collimated optical beam would be perfectly lined up with the fiber core. See also LOS.

Why is a detector collimator used?

A collimator is a device used to restrict the photon acceptance angle to provide positional information for detected photons. A SPECT collimator is a thick sheet of metal of high atomic number, usually lead or tungsten, pierced by an array of holes.

What is a laser collimator?

A laser collimator allows one to conveniently align the optics of a reflecting telescope. First, you use the laser collimator to determine whether or not the secondary mirror is pointing directly at the center of the primary mirror. The laser beam will reflect off the secondary mirror and reach the primary mirror.

How does a collimator sight work?

Collimator sights are 'blind' sights; that is, they are used with both eyes open while one looks into the sight, with one eye open and moving the head to alternately see the sight and then at the target, or using one eye to partially see the sight and target at the same time.

What is a collimating lens?

'Collimating' is the process of accurately aligning light or particles in a parallel fashion. Collimating lenses are for examples attached to spectrometers, colorimeters or light meters to ensure that the light that enters the instrument is parallel and provide accurate readings.

How do I know if my telescope needs collimation?

Alternatively, you can check your collimation by centering a bright star through an eyepiece with high magnification (e.g. 50x). In a misaligned scope, the star is out of focus and will appear as a doughnut shape with a dark center.

What is beam restrictors?

An x-ray beam restrictor is a device that is attached to the opening of the x-ray tube housing to regulate the size and shape of an x-ray beam.

What is a collimation eyepiece?

Collimation is the process of aligning the optical axes of all the optical elements in a telescope. The sight tube portion of the Collimation eyepiece has cross hairs to accurately define the center of the optical axis, and is used to make sure that the secondary mirror is centered directly under the focuser.

How do you collimate a beam?

One lens with a negative focal length and the other with a positive one creates a setup to collimate and expand or shrink the beam. Quite frequently the most popular way to focus a laser diode beam is to use a two lens system where one lens collimates the highly divergent beam and the second lens focusses it.

What is collimating a telescope?

COLLIMATING A NEWTONIAN. Page 1. Collimation is the process of aligning the mirrors of your telescope so that they work in concert with each other to deliver properly focused light to your eyepiece. By observing out-of-focus star images, you can test whether your telescope's optics are aligned.

Why do you set the telescope for parallel rays?

The purpose of a telescope is to form an image of a distant object. Parallel rays are a good approximation of the rays that come from a great distance. Even so, most telescopes have a focus control for fine adjustment. This allows the distance between them to vary without much effect.

What is a collimator in a gamma camera?

A collimator is the first processing layer of a gamma camera to encounter photons from radioactive source. It restricts the rays from the source so that each point in the image corresponds to a unique point in the source.

How do you collimate a reflector telescope?

To get your telescope well collimated, here is what you need to accomplish:

1. Step 1: Center the secondary mirror on the axis of the focuser drawtube.
2. Step 2: Aim the eyepiece at the center of the primary mirror.
3. Step 3: Center your primary mirror's sweet spot in the eyepiece's field of view.

How does collimation reduce scatter?

Because collimation decreases the x-ray beam field size, less scatter radiation is produced within the patient, and less scatter radiation reaches the IR.

How much radiation do you get from fluoroscopy?

Getting a fluoroscopic procedure exposes a patient to as much radiation as 250 to 3,500 chest X-rays. For perspective, a person gets the equivalent of one chest X-ray from normal background radiation in about two and a half days.

How is scatter radiation produced?

When an x-ray beam enters a patient's body, a large portion of the photons engage in Compton interactions and produce scattered radiation. Some of this scattered radiation leaves the body in the same general direction as the primary beam and exposes the image receptor. This scattered radiation reduces image contrast.

How can scatter radiation be reduced?

The amount of scatter radiation can be reduced in some cases by any of the following methods. By limiting the incident beam of x-rays to as small an area as possible. By using a low rather than a high kilovoltage. By the use of clearing grids which are still referred to as 'Potter-Bucky' or 'Bucky grids'.

What affects spatial resolution?

Spatial resolution refers to the ability to differentiate small structures. The size and quality of the detectors directly affect the spatial resolution. Miniaturization of the detectors is limited by the necessity of much higher tube currents to compensate increased image noise.

What is the effect of a grid on contrast?

Grids are placed between the patient and the x-ray film to reduce the scattered radiation (produced mainly by the Compton effect) and thus improve image contrast.
