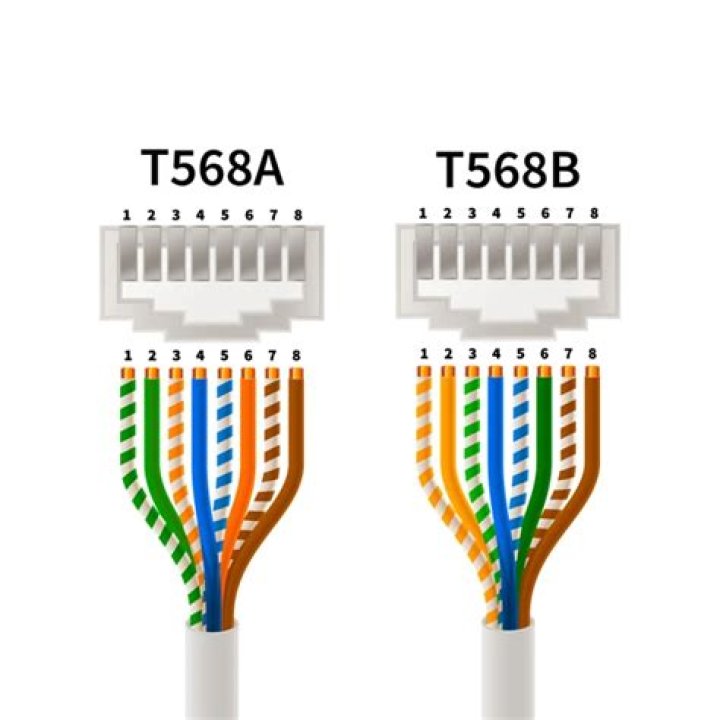

T568A and T568B are the two color codes used for wiring eight-position RJ45 modular plugs. T568A wiring pattern is recognized as the preferred wiring pattern for this standard because it provides backward compatibility to both one pair and two pair USOC wiring schemes.

.

Considering this, what is 568b standard?

EIA/TIA 568A & 568B Standard. The cable color code is the 568B standard on each end of a straight-through 10/100BaseT cable. When connecting hub to hub, Xcvr to Xcvr, or NIC to NIC, the wires must crossover at the opposite end of the cable assembly,use the 568B on one end, 568A on the other end.

Likewise, do I use a or b Ethernet? 568A is standard for voice connections. Electrically they are the identical, the pair colors are just different. There's really no functional difference, only thing is, wiring a run or jumper with one end -A and the other -B creates a crossover cable. 568B is typical standard - whatever you use, just be consistent.

Subsequently, question is, what is the intended use of 568a standard?

The 568A and 568B colour code schemes are used to wire the RJ45 eight position modular plugs correctly. The 568A wiring pattern is recognised as the preferred wiring scheme for standard use because it provides backward compatibility for both one pair and two pair Universal Service Order codes (AT&T) USOC wiring.

Is 568a or 568b better?

Answer: We recommend that you use 568B and a crossover cable is not needed. You can even have a mixed cables, some cables as 568A and some as 568B as long as all of them are “Straight-Through” cables. However, it's advised not to mix different color schemes because this may cause confusion.

Related Question Answers

Is 568a or 568b standard?

EIA/TIA 568A & 568B Standard. The cable color code is the 568B standard on each end of a straight-through 10/100BaseT cable. If a crossover cable is needed, use the 568A standard on one end and 568B on the other end. Use a straight thru cable assembly,568B on both ends when connecting Hub to Xcvr or NIC Card.

Can you mix t568a and t568b?

In LANs, as spec'ed by 568, there are two possible pinouts, called T568A and T568B that differ only in which color coded pairs are connected - pair 2 and 3 are reversed. Note: Plugs/jacks and punchdowns have different color codes! You cannot mix them up as they will result in wiremap errors - esp.

Is t568b faster than t568a?

Although T568B is the most widely used, the T568A wiring scheme is seen as the better wiring scheme for RJ45 modular plugs because it provides reverse compatibility to not only one, but also two-pair USOC wiring setups.

What is the difference between CAT 5 and CAT 6?

The main difference between cat5 and cat6 cables is reduced “crosstalk” and faster speeds in the transferring of data and connection. The speed of a cat5 cable can handle up to 10/100 Mbps (megabytes per second) at 100 Mhz bandwidth, a speed that was quite efficient in earlier applications of the cat5.

What are cabling standards?

The TIA/EIA structured cabling standards define how to design, build, and manage a cabling system that is structured, meaning that the system is designed in blocks that have very specific performance characteristics. The blocks are integrated in a hierarchical manner to create a unified communication system.

What is the difference between a TIA 568a standard and a TIA 568b standard?

TIA/EIA 568A and TIA/EIA-568B standards determine the order of the wires placed in the RJ45 connector. Functionally, there is no difference between TIA/EIA 568A and TIA/EIA-568B standards. Only the difference is that the position of Green and Orange wires are switched. You can follow any standard.

What is the color code for 568b?

Looking for more information on Straight Wired vs Cross Wired? Click Here

Pin #	Wire Color
6	Orange
7	White/Brown
8	Brown
568-A Color Code

When would you use a crossover cable?

An Ethernet crossover cable is a crossover cable for Ethernet used to connect computing devices together directly. It is most often used to connect two devices of the same type, e.g. two computers (via their network interface controllers) or two switches to each other.

What cable do I need for 10gb Ethernet?

CAT6A or CAT6 “Augmented” is the recommended cable for 10G networking applications. 10G Connectors: The connector choice to be used for 10G Ethernet is the 8 position 8 conductor (8P8C) RJ45. This connector is available in both plug and jack formats, but must be compatible with 23AWG twisted pair.

What is the 568b wiring scheme?

T-568A and T-568B are the two wiring standards for RJ-45 connector data cable specified by TIA/EIA-568-A wiring standards document. The difference between the two is the position of the orange and green wire pairs. It is preferable to wire to T-568B standards if there is no pre-existing pattern used within a building.

Do Cat 7 cables make a difference?

Cat6 cable standard provides performance of up to 250 MHz while Cat7 cable is rated for transmission frequencies of up to 600 MHz. The maximum cabling length of Cat6 network cable is 100 m. Cat7 has been designed as a standard for Gigabit Ethernet over 100 m of copper cabling.

What is the color code for CAT 5 cable?

Crossover Cable Wiring Diagram:

RJ45 Pin # (END 1)	Wire Color	Wire Color
2	Orange	Green
3	White/Green	White/Orange
4	Blue	White/Brown
5	White/Blue	Brown

What is UTP cable used for?

Unshielded twisted pair (UTP) cables are widely used in the computer and telecommunications industry as Ethernet cables and telephone wires. In an UTP cable, conductors which form a single circuit are twisted around each other in order to cancel out electromagnetic interference (EMI) from external sources.
