Alternatively known as an AC/DC adapter, AC converter or charger, an AC adapter is an external power supply used with devices that run on batteries or have no other power source. AC adapters help reduce the size of a laptop computer by alleviating the need for a standard sized power supply.

.

In this manner, what does AC in AC adapter mean?

An AC adapter, AC/DC adapter, or AC/DC converter is a type of external power supply, often enclosed in a case similar to an AC plug. AC adapters are used with electrical devices that require power but do not contain internal components to derive the required voltage and power from mains power.

Likewise, are all AC adapters the same? As long as the voltage is the same on the adapter and on the device (also, I have 9V DC and 9V AC adapters, do not mix these up) and be sure the current required is less than the amount that the adapter can source otherwise you risk overloading the power supply.

Thereof, what is the difference between an AC adapter and an AC DC adapter?

A DC adaptor differs from an AC adaptor in that the DC adaptor converts AC electricity into DC electricity. For example, a 12 V DC adaptor sold in the United States will convert 120 V AC at 60 Hz into 12 V DC. Like its AC counterpart, a DC adaptor is also rated for maximum power output in watts.

What is an AC to AC adapter?

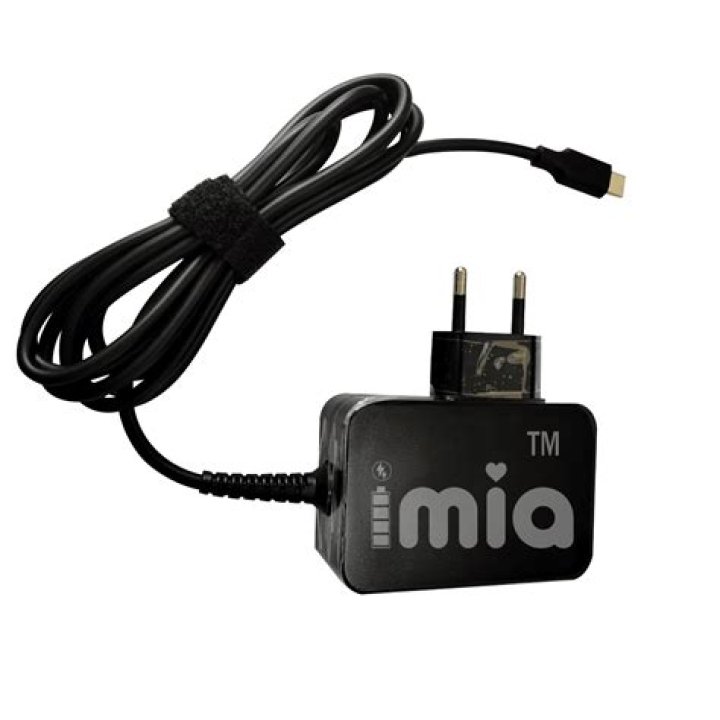

Alternatively known as an AC/DC adapter, AC converter or charger, an AC adapter is an external power supply used with devices that run on batteries or have no other power source. As shown in the image, an AC adapter is made up of a central unit which draws power from an AC outlet.

Related Question Answers

How do AC adapters work?

In short, an AC Adaptor converts the electric currents received by the electrical outlet into a typically lower alternating current that an electronic device can use. Inside the AC adaptor are two wire windings that wrap around a single iron core.

Is an AC adapter the same thing as a Charger?

There is no difference between an AC Adapter, a power supply and a charger in reference to a laptop computer: all three functions are handled by the device's external power device. With laptops, all three names refer to the same device that's commonly referred to as a "power brick."

How do I check the polarity of my AC adapter?

Reading the polarity of the connector The most common is center positive (+) connectors. There is also the less popular center negative (-) connector. The adapter and the device must match so always double check the symbol on the AC adapter and the device show the same polarity.

Do AC adapters go bad?

AC adapter components go bad from heat and use. The adapter still uses some electricity even when nothing is plugged into it. So if you can unplug it, or let a power strip cut the power for you, when you're not using the device, the AC adapter will last longer.

What does AC mean for power?

alternating current

Which wire is positive on an AC adapter?

The wire with the white stripe should be the positive wire with the negative wire being the one that's all black.

How is AC converted to DC?

A rectifier is an electrical device that converts alternating current (AC), which periodically reverses direction, to direct current (DC), which flows in only one direction. The process is known as rectification, since it "straightens" the direction of current.

What is the function of Adaptor?

An adapter is a physical device that allows one hardware or electronic interface to be adapted (accommodated without loss of function) to another hardware or electronic interface. In a computer, an adapter is often built into a card that can be inserted into a slot on the computer's motherboard.

Will too much amperage hurt a device?

The amperage rating is the maximum amount of power it can supply. If for some reason your replacement power supply has a lower-than-required maximum amperage rating, you may end up with a burnt out or overheating power supply, and the device itself may not function.

Is my plug AC or DC?

Many devices in your house need DC. When you plug things into the outlet in your house, you don't get DC. Household outlets are AC - Alternating Current. This current has a frequency of 60 Hz and would look something like this (if you plotted current as a function of time).

How do I know what laptop charger to buy?

Choosing a Replacement Adapter:

1. Find your laptop's model number. You may find this number located on a sticker on the bottom or side of your laptop computer.
2. Find your wattage requirements.
3. Find a compatible laptop adapter.

Can I plug a 220v into 110v?

If you plug a 220V device into 110V outlet, it will normally last a little longer before it dies. But: An AC mechanical drive may fail to start, or it may take up more current than it is designed for, and eventually burn out. The insulation is usually not a problem unless there is a major flaw in the design.

What is a Type C charger?

USB Type-C is no guarantee that you'll see the fastest available data speeds. As well as delivering data, USB Type-C is designed to power all of our gadgets and not just the portable ones. The connector is rated to deliver and receive up to 100W of power, making it suitable to charge laptops and more.

Why are AC adapters so big?

They are large because of the physical size of the components that they need. With newer technology, and lower power devices, some AC adapters no longer do that, but for larger devices that is likely to be an issue for years to come. One solution is to use a cable extension between the AC outlet and the adaptor.

Will any 12v adapter work?

Voltage has to be an exact match. A 12V DC device needs a 12V DC adapter. If your device states it is 12V 3A, a 3A adapter can handle that load, but so can a 4A and 5A. The higher amperage (amp) power supply will not have to work as hard to handle a smaller load, and will run cooler and more stable.

Is a USB port AC or DC?

The plugs are small and convenient. The cable can carry both power and data. Plus, USB is, well, universal. I'm talking, of course, about direct current (DC), the standard championed by Thomas Edison that eventually lost out to Nikola Tesla's alternating current (AC) as the global standard for electricity.

Can I use a 65 watt charger on a 45 watt laptop?

Yes. Wattage is a measurement of how much power a supply CAN generate, or how much your device DOES consume. The wattage of your power supply is a rating of the maximum power that can be drawn down from it; if your computer requires 45w but your supply can provide 65w, you will be fine.
